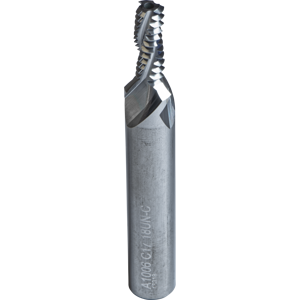

AMT 1006 C17 18 UN-C K20

$ 234.50 $ 293.12

MET-SHANK W-COOL BORE FOR UN INT-RH&LH THREAD, PITCH:18TPI, SHANK:10mm, OAL:73mm(2.9"), CUT D:~6mm(.236"), CHMF H:.740mm(.331"), A:45DEG, CUT L:~17.6mm(.693"), UNC:(5/16), FLUTES:3, GRADE:K20

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

Collections: Thread Mills

Type: Thread Mills

Pin It

Related Items

MTSH 0250 C35 36 UN MT9 $ 160.50 $ 200.62

#Flutes:3, Cut Dia:0.13", Grade:MT9, IN-RH/LH, Matl:Carbide, Neck Len:0.35", Overall Len:2.5", Pitch:36.00 TPI, Shank Dia:(1/4)mm, Thread Dep:2.0xD1, Thread Form:UN, Thread Standard:8

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

MTSH 0250 C42 24 UN MT9 $ 160.50 $ 200.62

#Flutes:3, Cut Dia:0.138", Grade:MT9, IN-RH/LH, Matl:Carbide, Neck Len:0.42", Overall Len:2.5", Pitch:24.00 TPI, Shank Dia:(1/4)mm, Thread Dep:2.0xD1, Thread Form:UN, Thread Standard:10,12

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

MTSH 0250 C59 32 UN MT9 $ 160.50 $ 200.62

#Flutes:3, Cut Dia:0.146", Grade:MT9, IN-RH/LH, Matl:Carbide, Neck Len:0.59", Overall Len:2.5", Pitch:32.00 TPI, Shank Dia:(1/4)mm, Thread Dep:3.0xD1, Thread Form:UN, Thread Standard:10

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

AMT 1006 C17 18 UN-C K20
