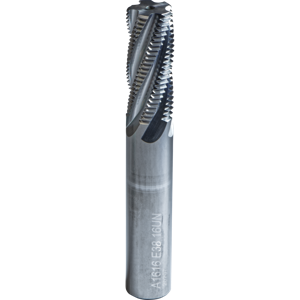

AMT 1616 E38 16 UN K20

$ 348.00 $ 435.00

MET-SHANK W-COOL BORE FOR UN (UNIFIED) INT-RH&LH THREAD, PITCH: 16.00 TPI, SHANK D: 16.00mm, OAL: 105.00mm (4.1"), CUT D: ~016.0mm (0.630"), CUT L: ~38.9mm (1.531"), UNF: (3/4"), FLUTES: 5, GRADE: K20

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

Collections: Thread Mills

Type: Thread Mills
