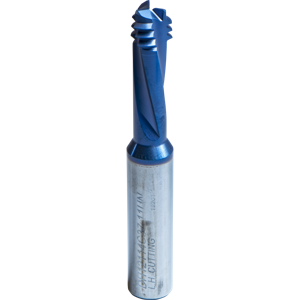

DMTH 12114 C37 11 UN MT11

$ 300.00 $ 375.00

#Flutes:3, Bottom Rel:0.091"/2.30mm, Chamf Dep:0.024"/0.60mm, Cut Dia:0.449"/11.4mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:1.46"/37.0mm, OAL:3.3"/84mm, Pitch:11.00 TPI, Shank Dia:12.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(5/8)

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

Collections: Thread Mills

Type: Thread Mills

Pin It

Related Items

MTSH 0250 C35 36 UN MT9 $ 160.50 $ 200.62

#Flutes:3, Cut Dia:0.13", Grade:MT9, IN-RH/LH, Matl:Carbide, Neck Len:0.35", Overall Len:2.5", Pitch:36.00 TPI, Shank Dia:(1/4)mm, Thread Dep:2.0xD1, Thread Form:UN, Thread Standard:8

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

MTSH 0250 C42 24 UN MT9 $ 160.50 $ 200.62

#Flutes:3, Cut Dia:0.138", Grade:MT9, IN-RH/LH, Matl:Carbide, Neck Len:0.42", Overall Len:2.5", Pitch:24.00 TPI, Shank Dia:(1/4)mm, Thread Dep:2.0xD1, Thread Form:UN, Thread Standard:10,12

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

MTSH 0250 C59 32 UN MT9 $ 160.50 $ 200.62

#Flutes:3, Cut Dia:0.146", Grade:MT9, IN-RH/LH, Matl:Carbide, Neck Len:0.59", Overall Len:2.5", Pitch:32.00 TPI, Shank Dia:(1/4)mm, Thread Dep:3.0xD1, Thread Form:UN, Thread Standard:10

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 12114 C37 11 UN MT11
