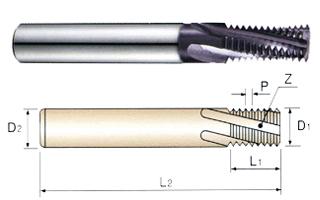

TE520 7/16-14 THREAD MILLS SOLID CARBIDE 60 DEGREE HELICAL FLUTE TIALN COATED FOR UNIFIED INTERNAL THREADS - ANSI B 1.1

$ 159.17 $ 198.96

YG 7/16-14 x 0.305 Diameter x 0.75 LOC x 0.312 Shank Diameter x 3 OAL x 4 Flutes Carbide ALTIN Coated Thread Mill

Application	For Stainless Steels/Steels/Exotics/Aluminum
Brand	YG
Chamfer	Thread Mill
Coating	ALTIN
Material	Carbide
Thread Mill Reach	.750"
Type	Thread Mill
UN Size	7/16

Type: Thread Mills
