TG020 1/16 AND 1/8 NPTF THREAD MILLS SOLID CARBIDE 60 DEGREE HELICAL FLUTE TIALN COATED FOR TAPER PIPE THREADS - NPTF ANSI B 1.20.3

$ 133.67 $ 167.09

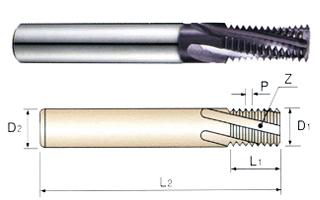

YG 1/16 and 1/8 NPTFx27TPI x 0.245 Diameter x 0.437 LOC x 0.25 Shank Diameter x 2.5 OAL x 3 Flutes Carbide ALTIN Coated Thread Mill

Click Here To View YG's Catalog

Collections: Thread Mills

Application	For Stainless Steels/Steels/Exotics/Aluminum
Brand	YG
Chamfer	Thread Mill
Coating	ALTIN
Material	Carbide
NPT Size	1/16&1/8
Thread Mill Reach	.437"
Type	Thread Mill

Type: Thread Mills
